Model usbo744 - Important, please read instruction below.
​
Parts Included
1 x Micro USB dry contact Wifi smartswitch with two female connections
1 x Micro USB Cable
1 x 5V power adapter
2 x Wire adapters
Some Parts may look different, wiring color will change and is not important
Warning: Please be aware
Take great care with the USB micro connection on the circuit board.
Do not Bend, twist or force when connecting the power cable.
Insert straight in and pull straight back to remove
If you snap connector off, please contact us at info@tvxmedia.com
we will let you know what to do next
If you snap connector off, please contact us at info@tvxmedia.com
we will let you know what to do next
Instructions:
Please note: You must turn off the fireplace the same way you turned it on.
example: On with smart switch, off with smart switch... Good
On with smart switch, off with wall switch...will not turn off
​
The Smart switch is a dry contact circuit and does not put out any volts.
​
When power is applied to the smart switch a red light will come on and you should hear a click. This confirms it is working correctly.
See below for instructions.
1st set of instructions are for milivolt gas valves.
​
2nd set of instructions below are for traditional setup with wall switch and quick connectors.,
​
Instructions for Milivolt Gas Valve
Connect the two female connectors form the relay to the two male connections circled below.
One will be marked " TH"
One will be marked "TH TP"
​
(Optional)If you have a wall switch or remote, connect the two wire adapters to the smart switch wires. one wire adapter goes on each wire.
Next connect the two wires from your wall switch or remote to the two remaining male connections on the wire adaptes.
You will now have 1 female connection on each wire remaining, this goes onto your milliviolt valve.
See images further down for help
​
Instructions for Wall switch spade connectors.

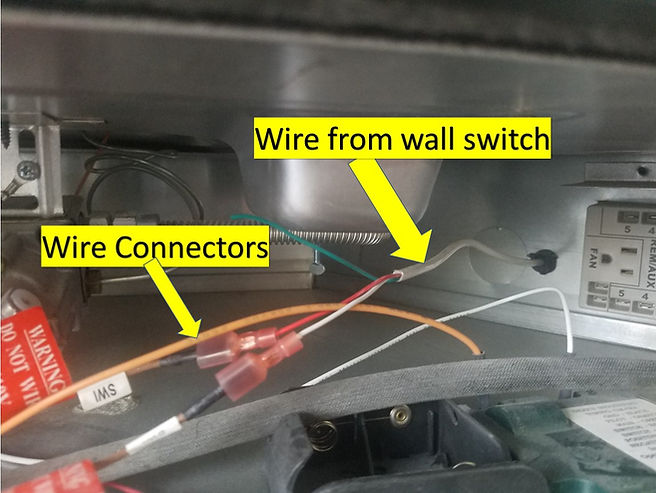

Find wall switch wire, there will be two spade connectors (sometimes wire nuts) connecting these two wires to your fireplace valve or wires from the valve.
Pull the wire connections apart, this will create four connectors.
Wire adapter connection. This allows two male connection onto one female connection
Turn On the power from the smart outlet and your fireplace should light. Make sure you smart outlet is connected to your Amazon or google account. Name the outlet "fireplace" in the Alexa app for example. You can now turn it on using your voice.
TROUBLESHOOTING.
If you have an issue, try a few simple steps first.
​
Did you test the replay switch before installing under your fireplace? If no, then disconnect everything and test manually using. Be very careful about the USB connection
​
Check power under Fireplace.
​
Make sure your smart outlet is connected to your account and working correctly.
​
​
​
​
